Product model

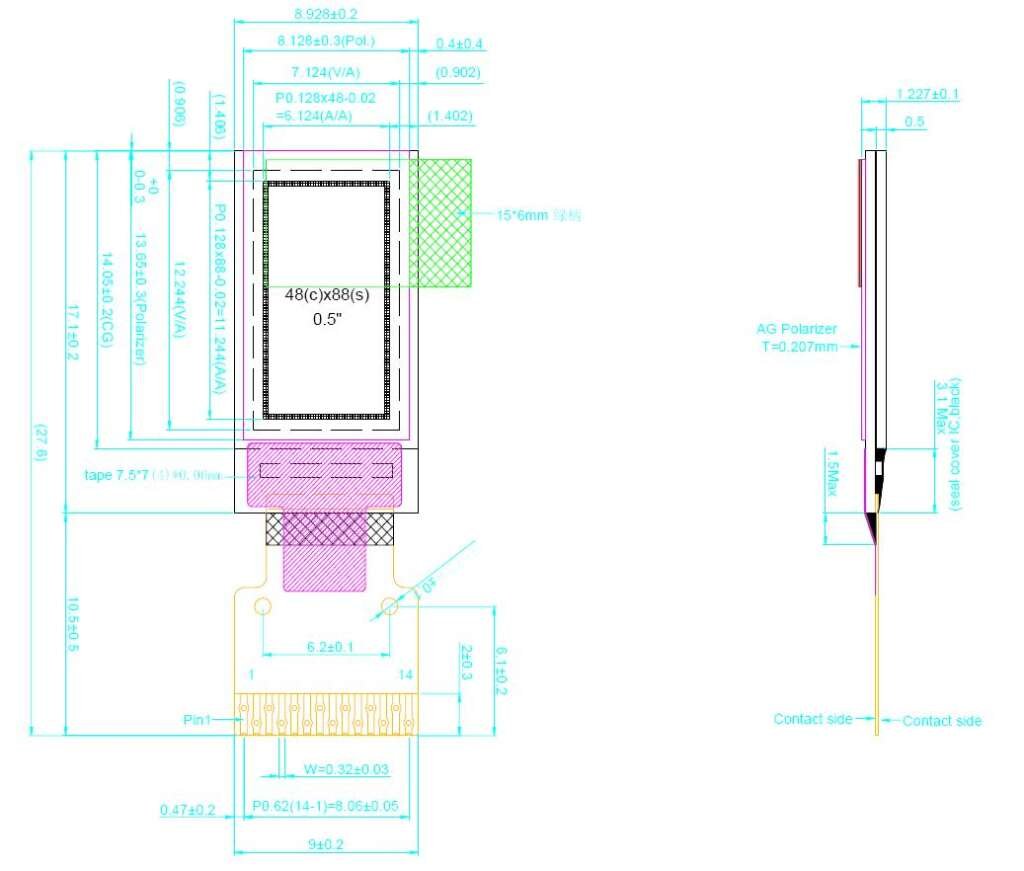

Outline Dimension



      Visual Area

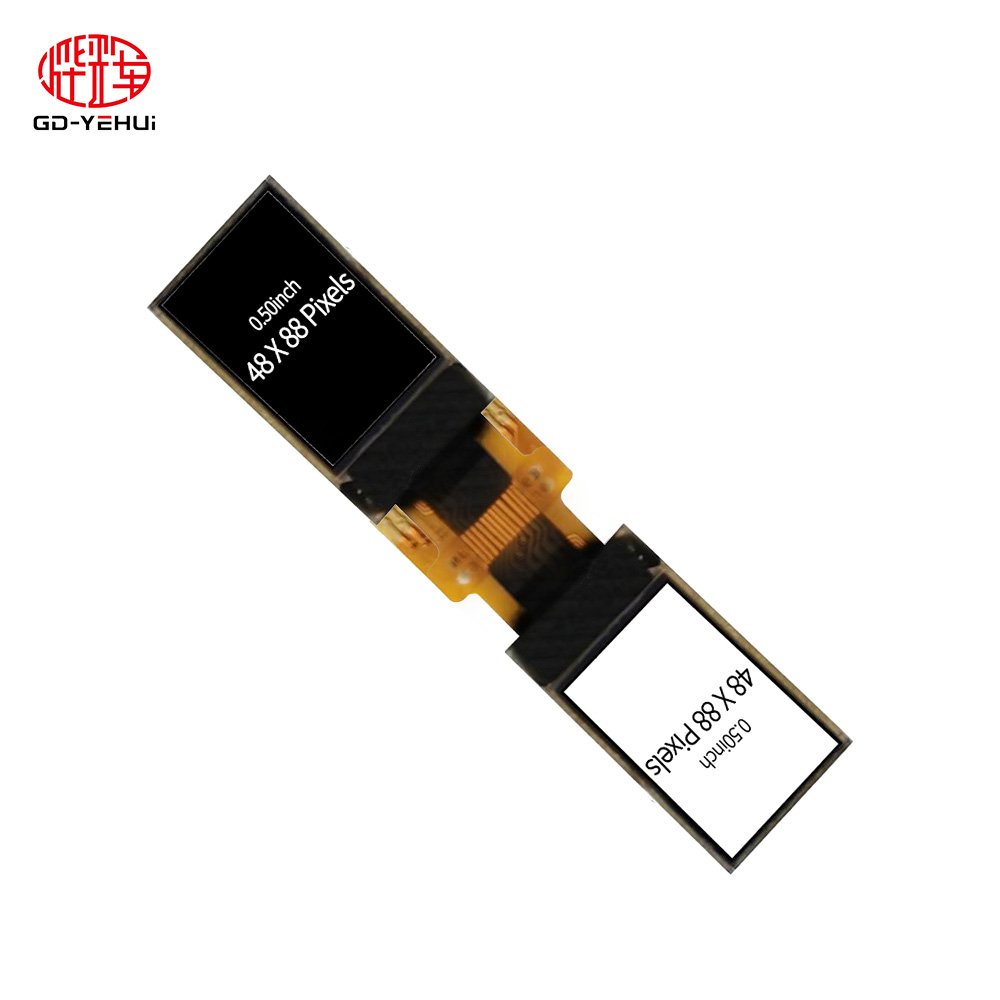

OLED0.5                                                         8.928mm x 17.1mm x 1.227mm                           6.124mm x 11.224mm

Number of Pixels: 48 * 88

IC Options: CH1115

Interface: IIC

Pin：14pins 0.62 mm pitch

Driving Voltage: 3.3V-4.2V

LCD Colors: Monochrome(White)
