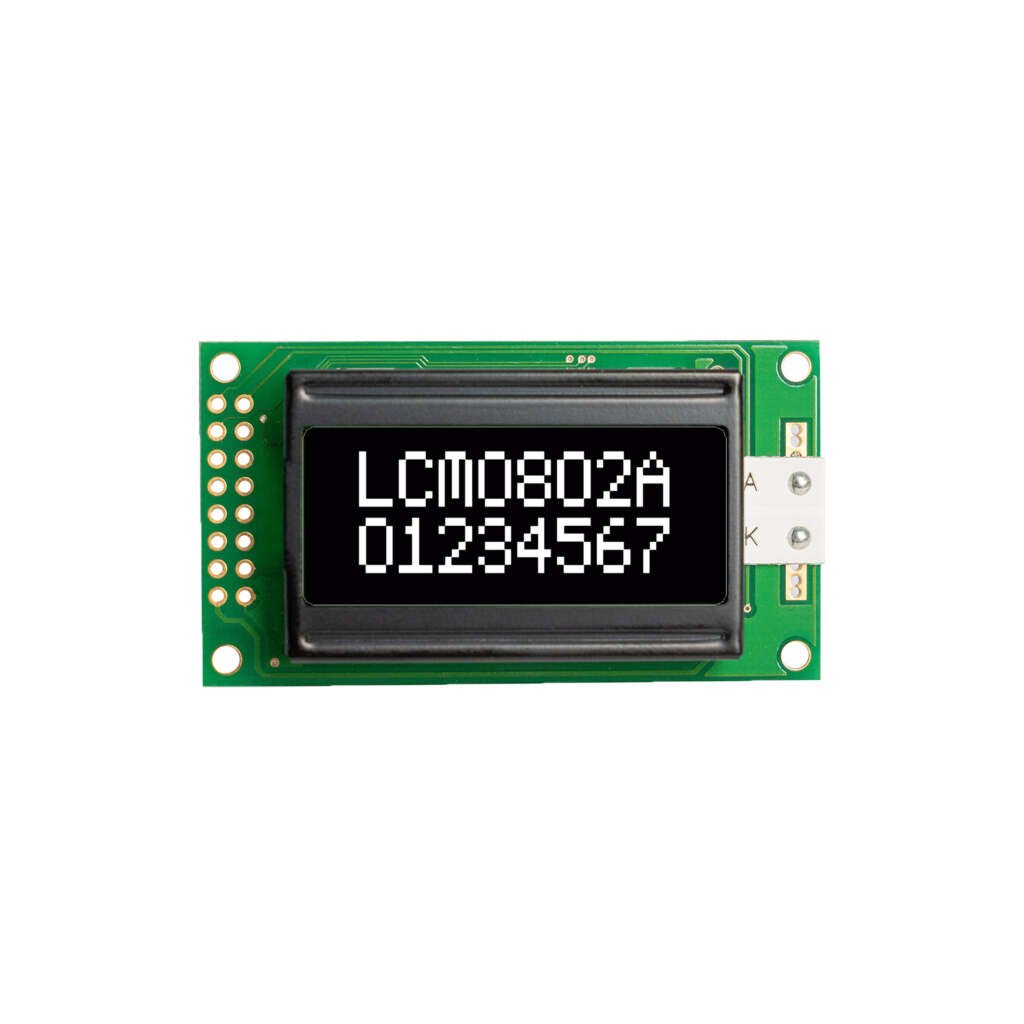

Product model

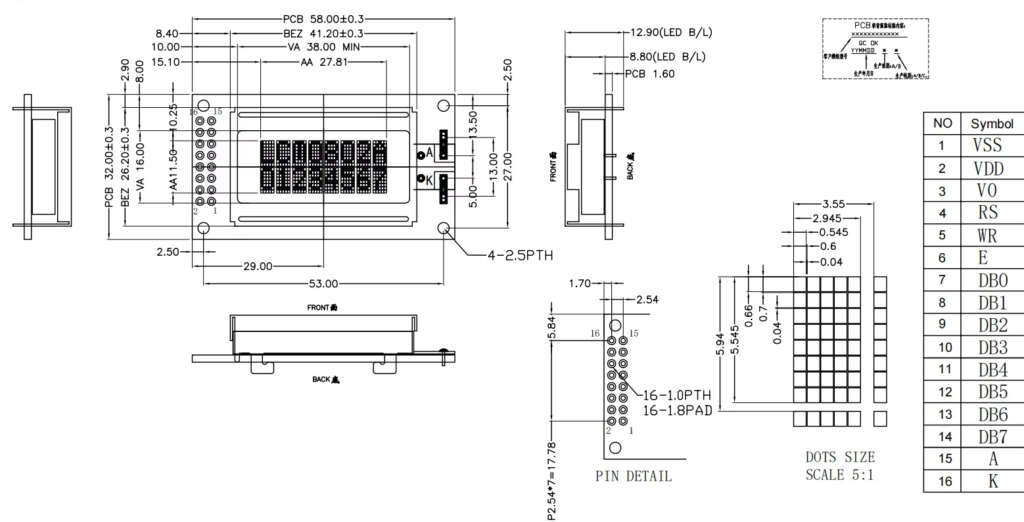

Outline Dimension
Visual Area
YHBC0802A 58.0mm x32.0mm 38mmx16mm
YHBC0802C 58.0mm x32.0mm 39mmx16mm
Display Type: 0802Character
IC Options: ST7066U/AIP31066L/RW1063
Interface: Parallel Port / SPI
Driving Voltage: 5V or 3.3V
LCD Colors: yellow-green, blue, gray, white, orange, FSTN, other
