Product model
Outline Dimension
Visual Area

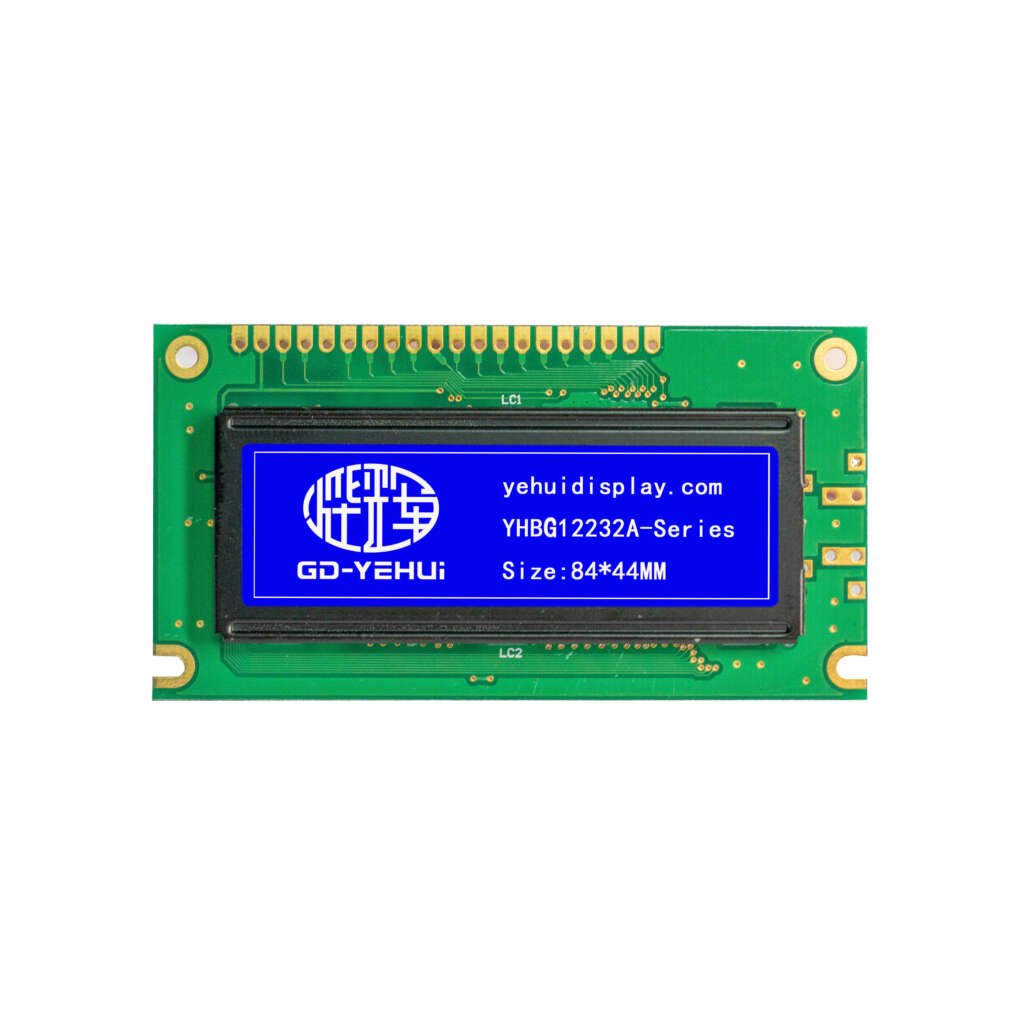

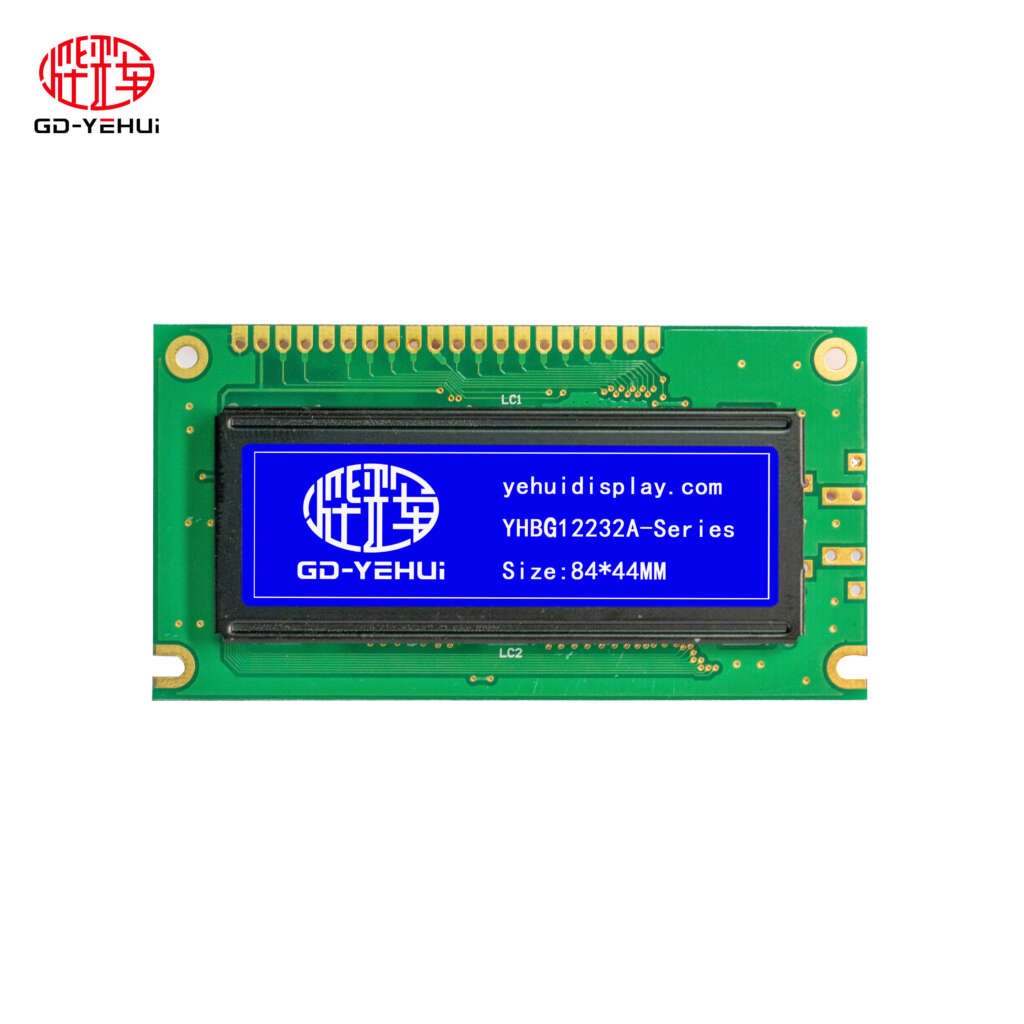

YHBC12232A 84.0mm x 44.0mm 61.3mm x 18mm
YHBC12232B 84.0mm x 36.0mm 60.1mm x 18mm
YHBC12232C 84.0mm x 44.0mm 60.1mm x 18mm

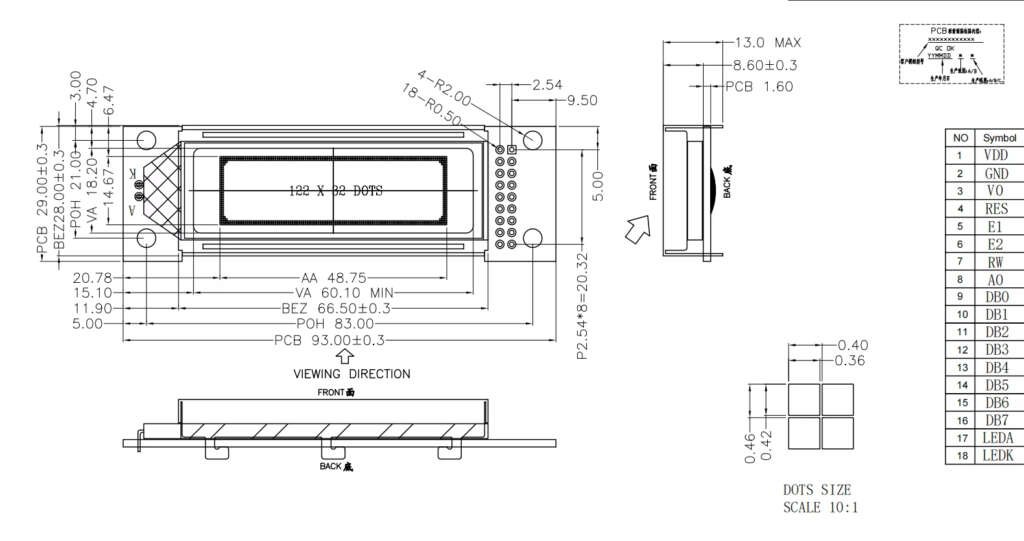

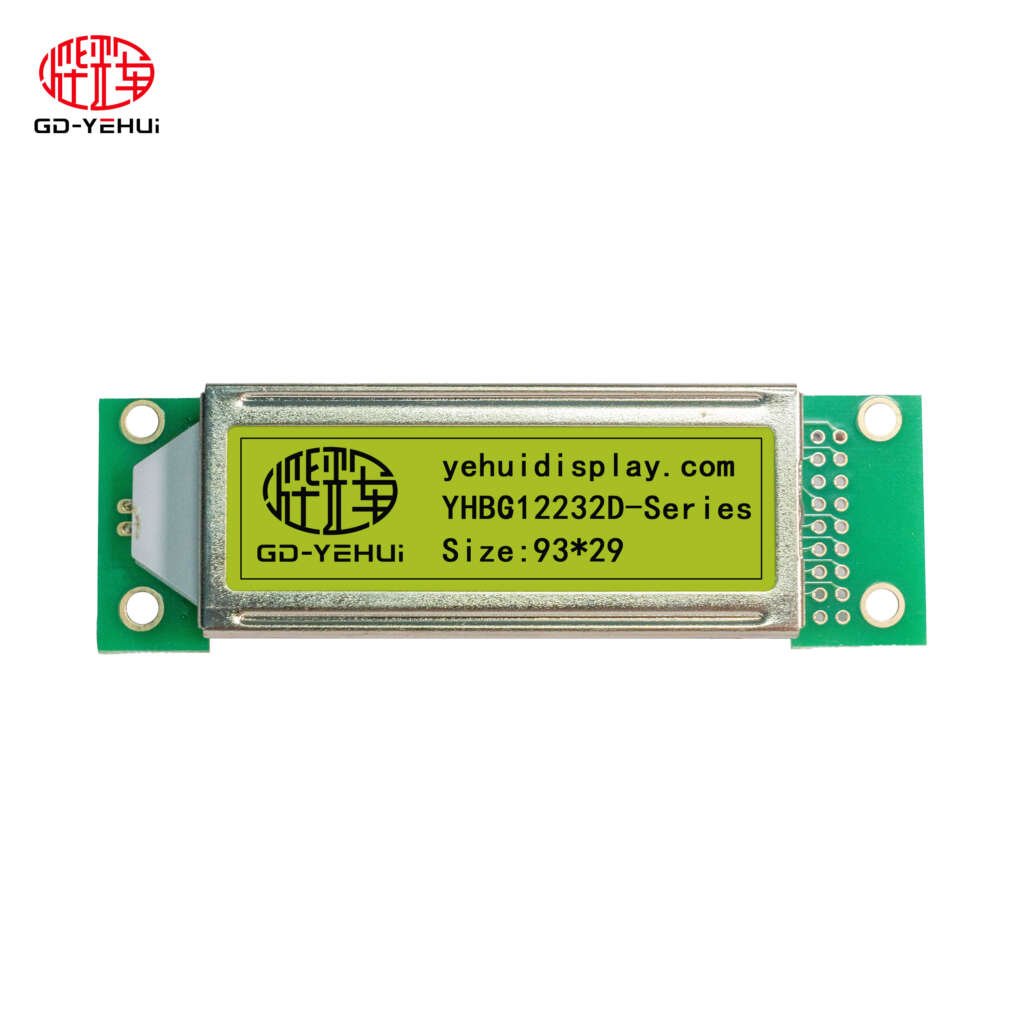

YHBC12232D 93.0mm x 29.0mm 60.1mm x 18mm
YHBC12232E 76.0mm x 29.0mm 60.0mm x 18mm
YHBC12232F 76.0mm x 29.0mm 60.0mm x 18mm
Display Type: 12232 Graphic
IC Options: SBN1661G-M18/SBN1661G-M02/外振/ST7920/AIP31020
Interface: Parallel Port / SPI
Driving Voltage: 5V or 3.3V
Product pin : 18/20 pin
LCD Colors: yellow-green, blue, gray, white, orange, FSTN, other
