Product model

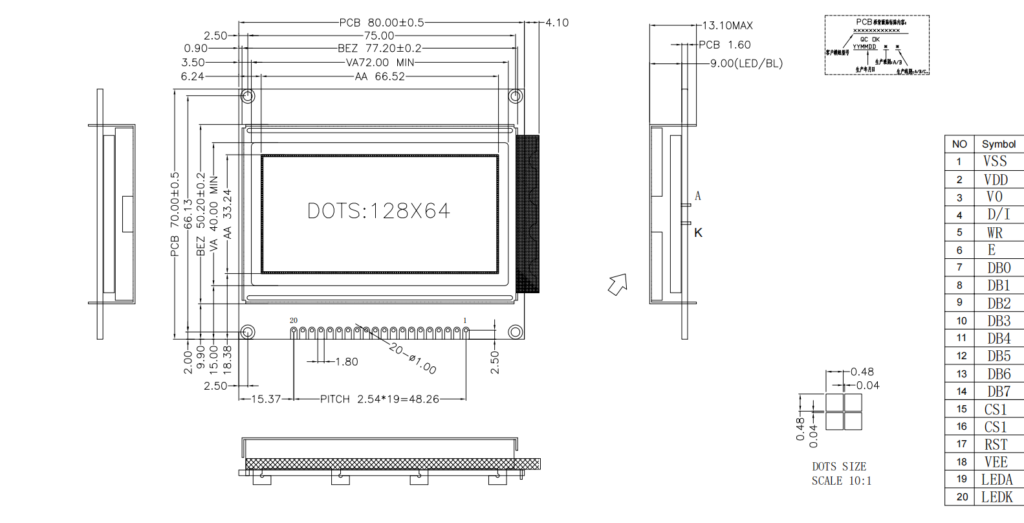

Outline Dimension
Visual Area
YHBC12864A 55.0mm x 27.0mm 48mm x 12mm
YHBC12864B 84.0mm x 44.0mm 61mmx15.8mm
YHBC12864C 84.0mm x 44.0mm 61mmx15.8mm

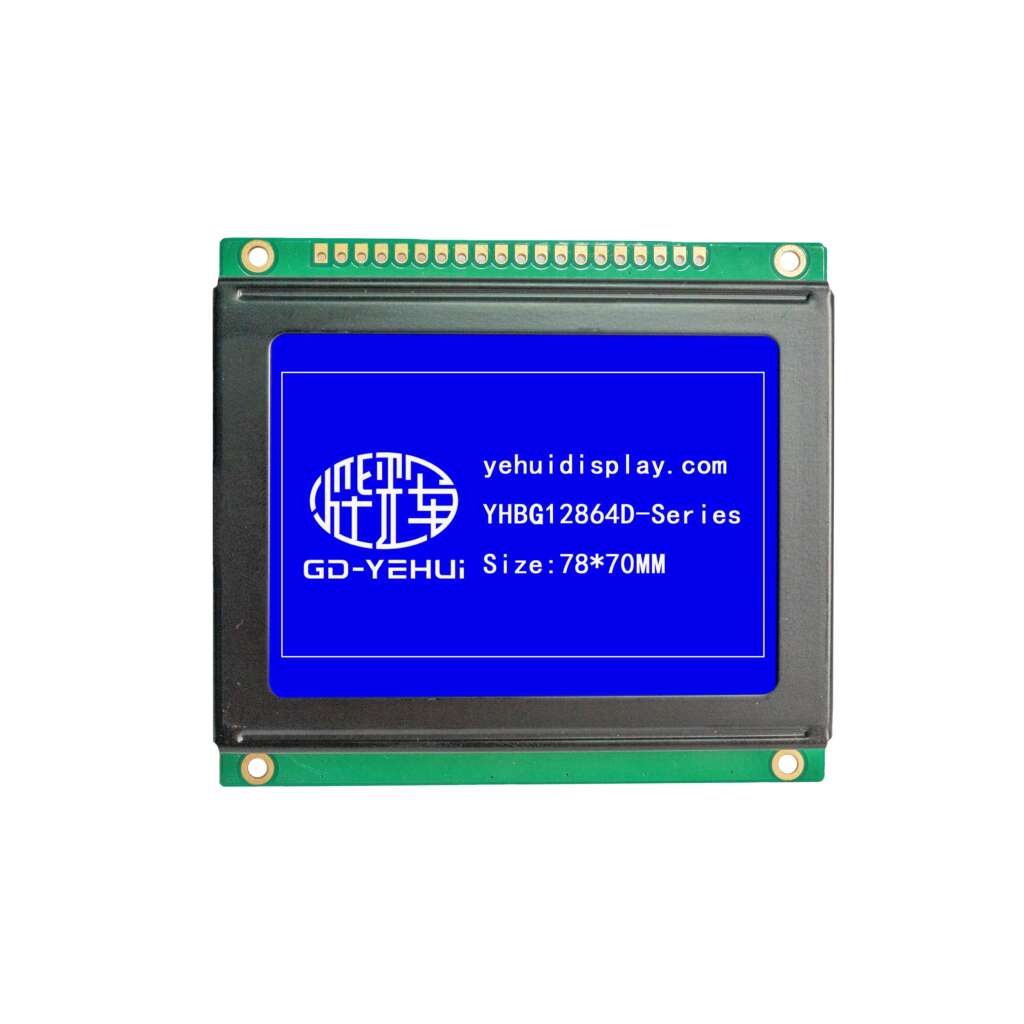

YHBC12864D 84.0mm x 44.0mm 61mmx15.8mm
YHBC12864E 84.0mm x 44.0mm 61mmx15.8mm
YHBC12864F 84.0mm x 44.0mm 61mmx15.8mm

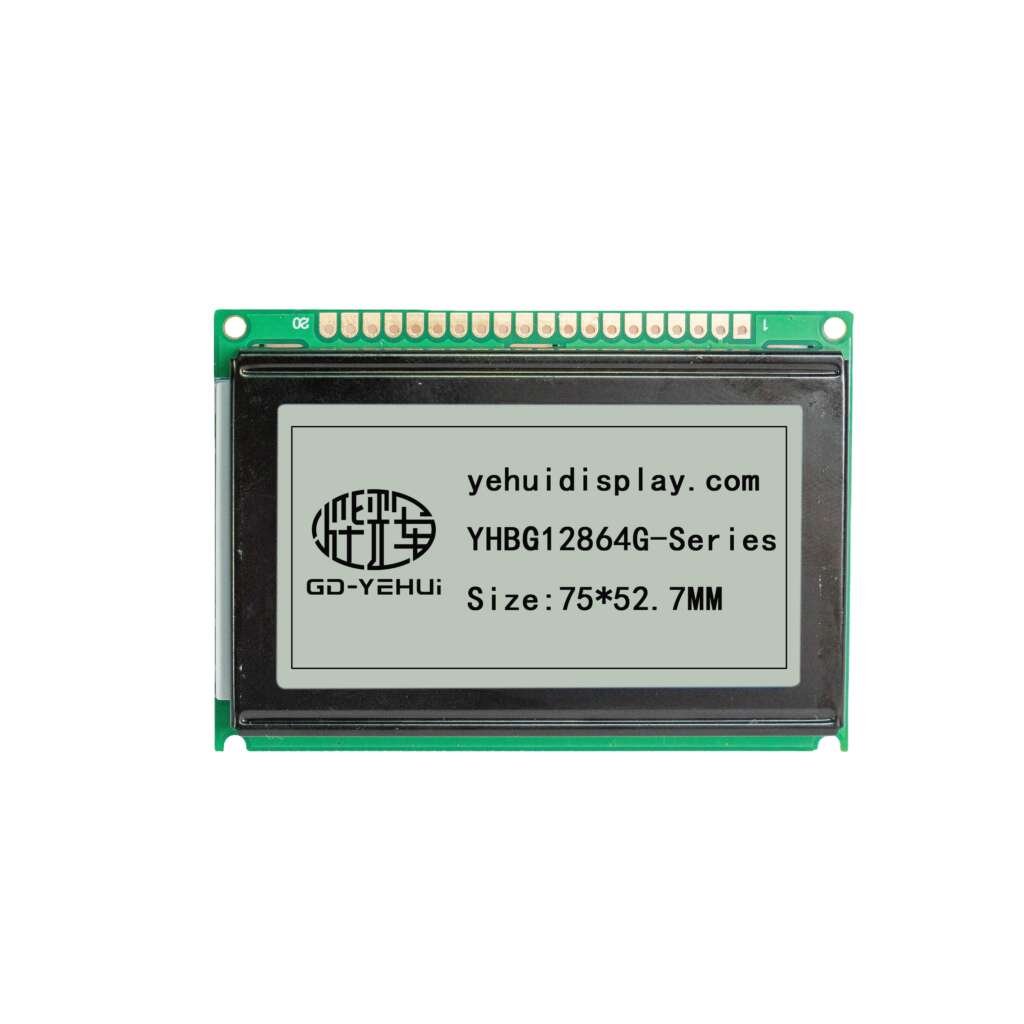

YHBC12864G 84.0mm x 44.0mm 61mmx15.8mm
YHBC12864J 84.0mm x 44.0mm 61mmx15.8mm
YHBC12864H 84.0mm x 44.0mm 61mmx15.8mm
Display Type: 12864 Griphic
IC Options: SBN0064G / SBN6400G / ST7920 / AIP31020 / UCI6963C / RA6963(NT7086贴片)
Interface: Parallel Port / SPI
Productpin:16 / 18 / 20 Pin
Driving Voltage: 5 V or 3.3 V
LCD Colors: yellow-green, blue, gray, white, orange, FSTN, other
