Product model

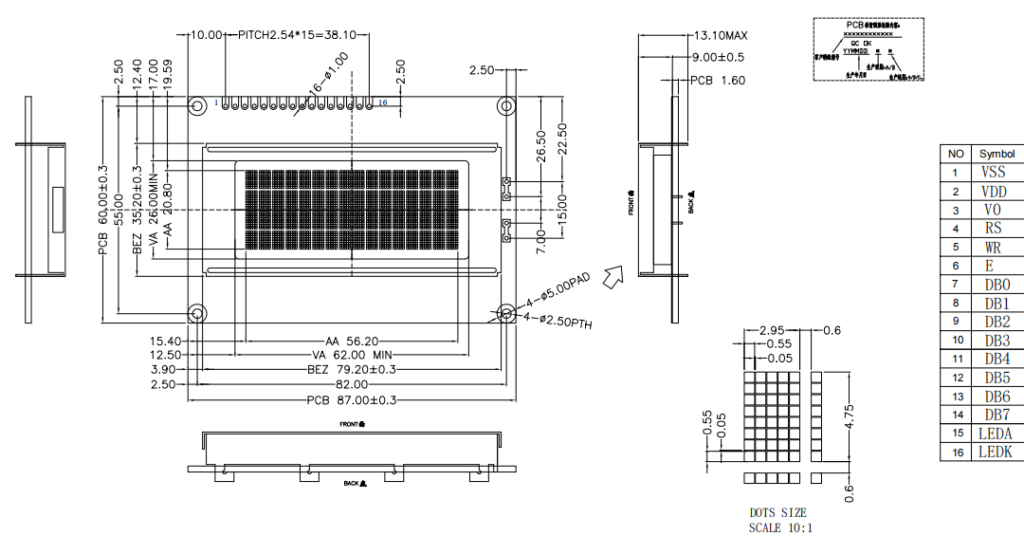

Outline Dimension
Visual Area

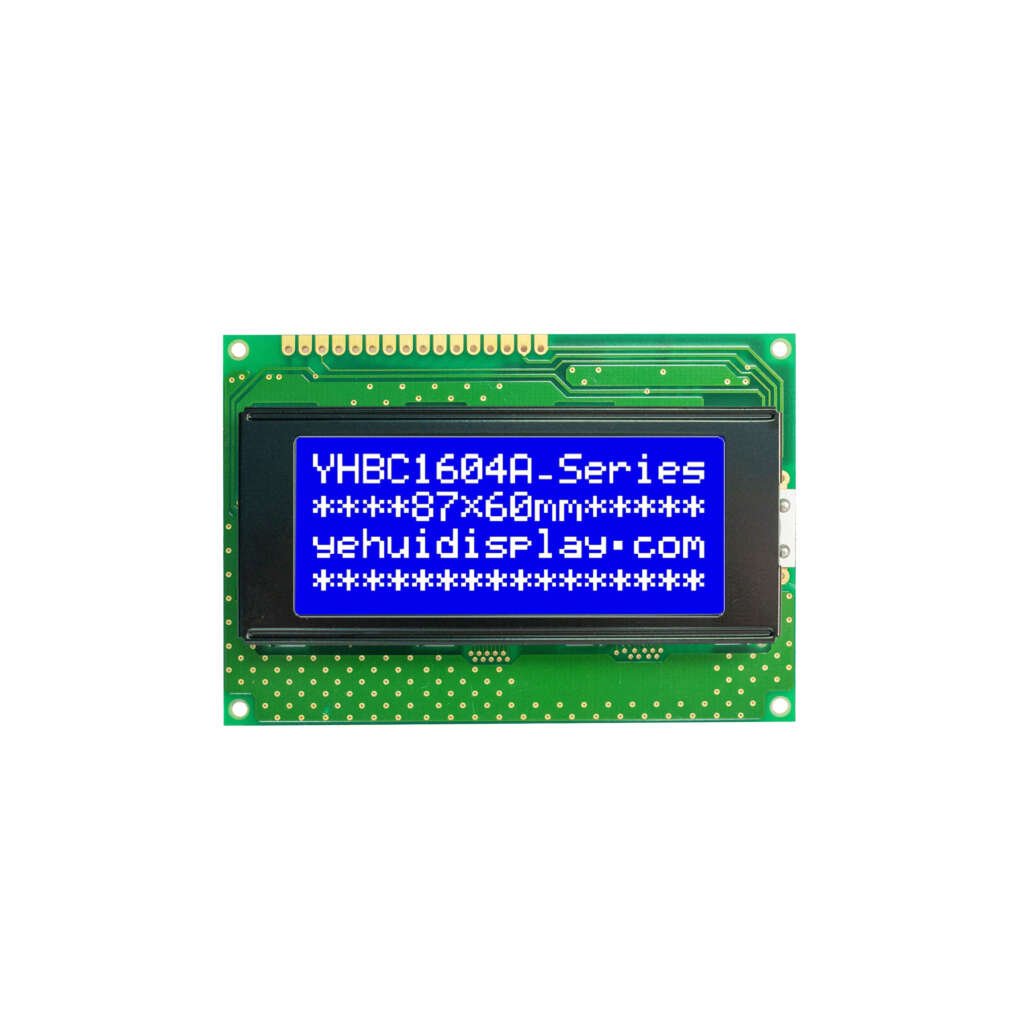

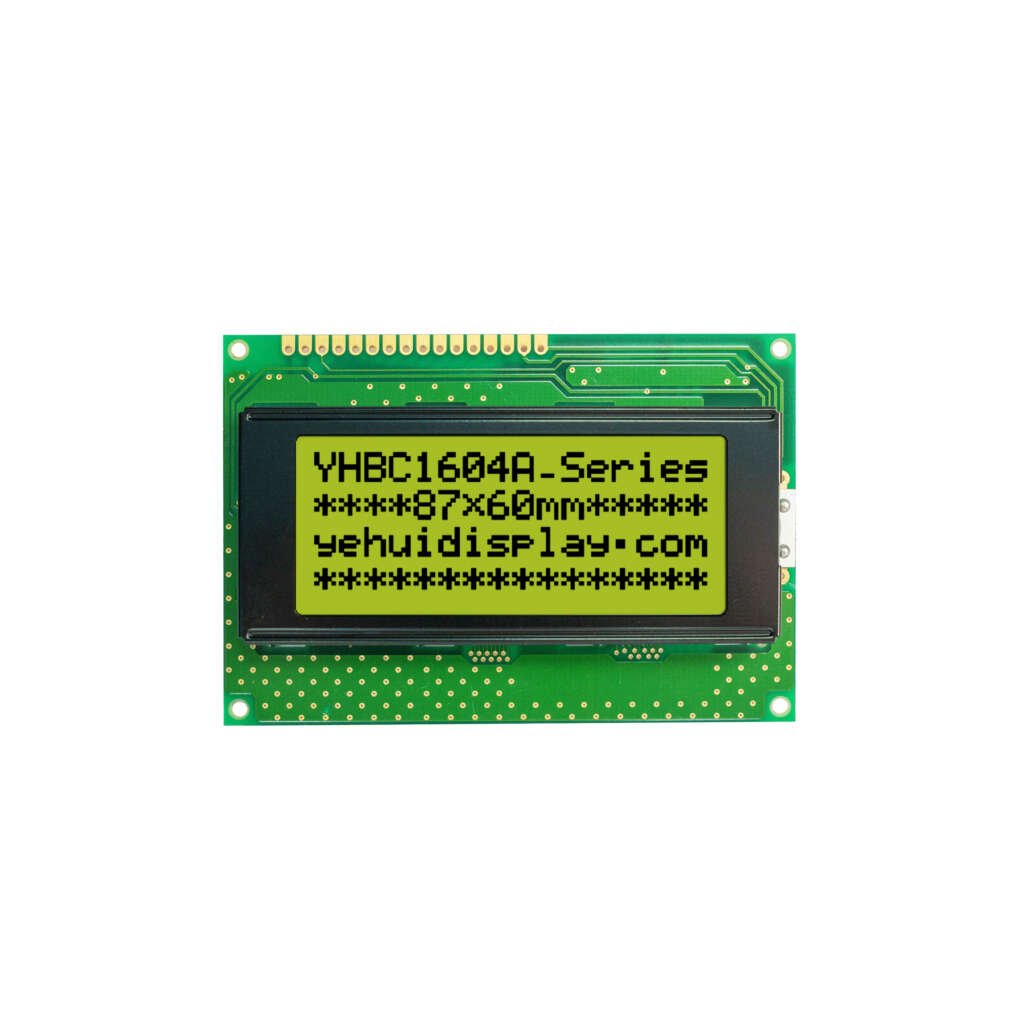

YHBC1604A 87.0mm x 60.0mm 62mm x 26mm
YHBC1604B 87.0mm x 60.0mm 61.7mm x 25.2mm
Display Type: 1604 Character
IC Options: SPLC780D / AIP31066
Interface: Parallel Port
Driving Voltage: 5V or 3.3V
LCD Colors: Yellow-Green, Blue, Gray, White, Orange, FSTN, Other
