Product model

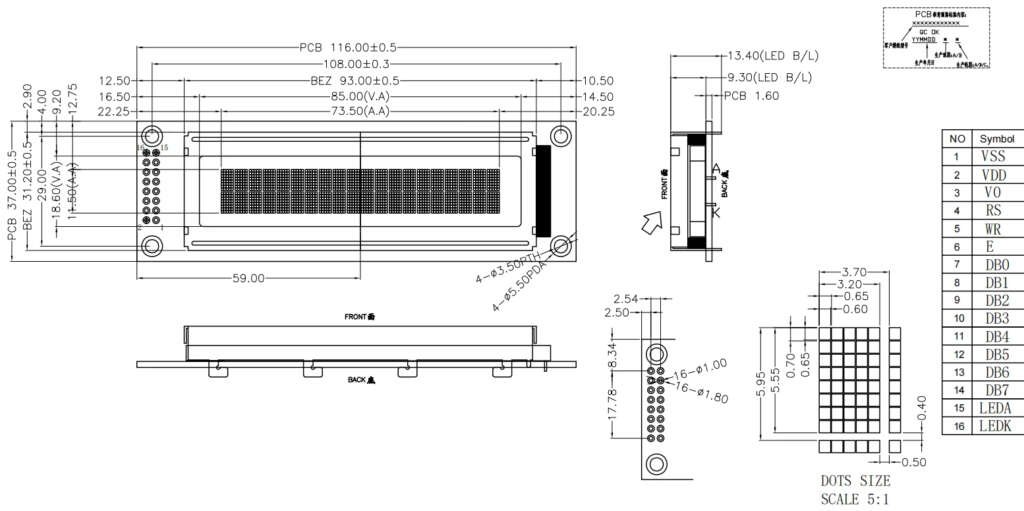

Outline Dimension
Visual Area
YHBC2002A 116.0mm x 37.0mm 85mm x 18.6mm
YHBC2002B 116.0mm x 35.0mm 83mm x 18.5mm
YHBC2002C 146.0mm x 43.0mm 123mm x 23mm
YHBC2002D 80.0mm x 36.0mm 64.5mm x 16mm
Display Type: 2002Character
IC Options: ST7066U, AIP31066L, RW1063
Interface: Parallel Port / SPI
Driving Voltage: 5V or 3.3V
LCD Colors: Yellow-Green, Blue, FSTN, or Custom Options
