Product model

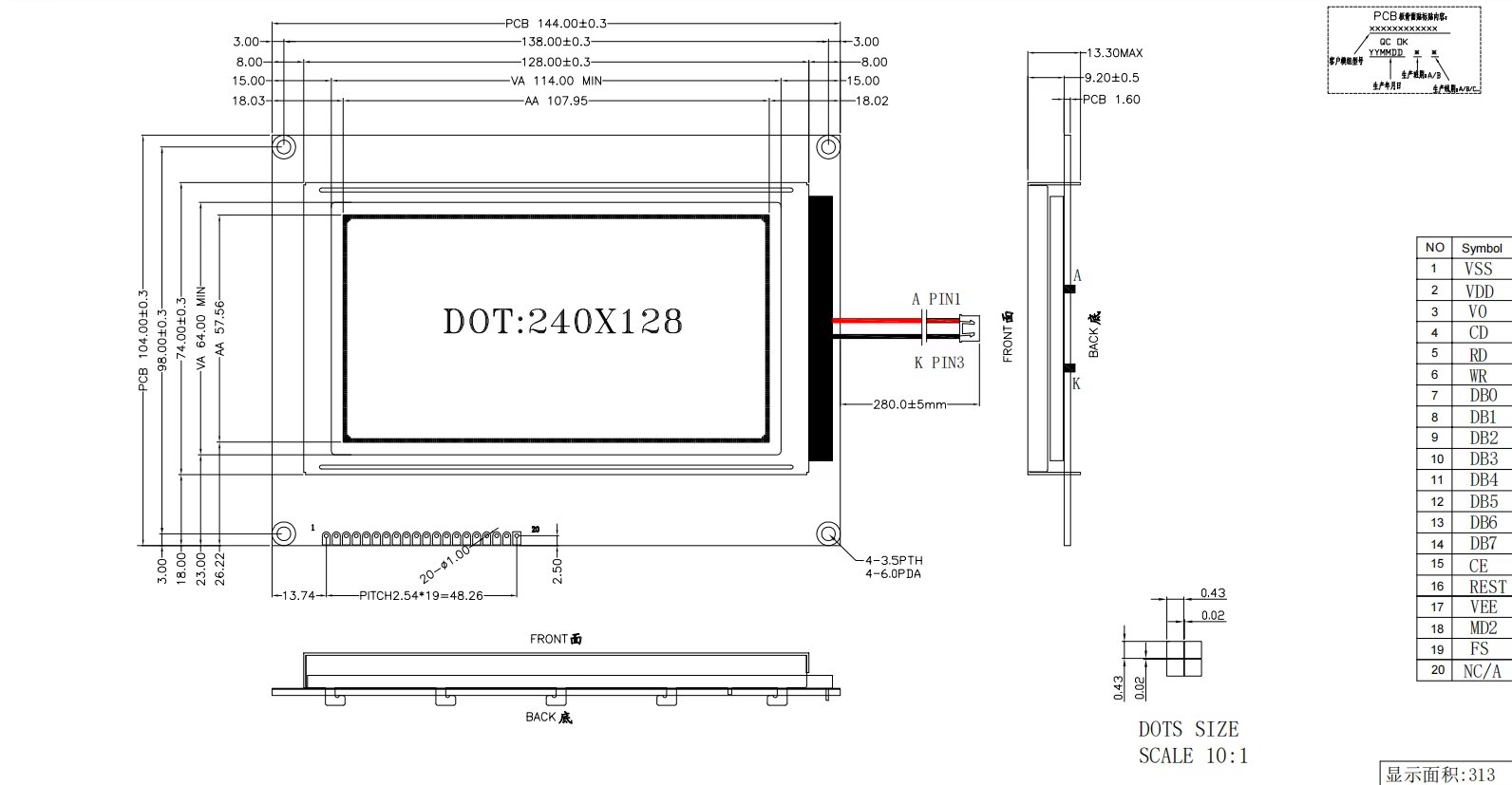

Outline Dimension
Visual Area
TL240128A 144.0mm x 104.0mm 114.0mm x 64mm

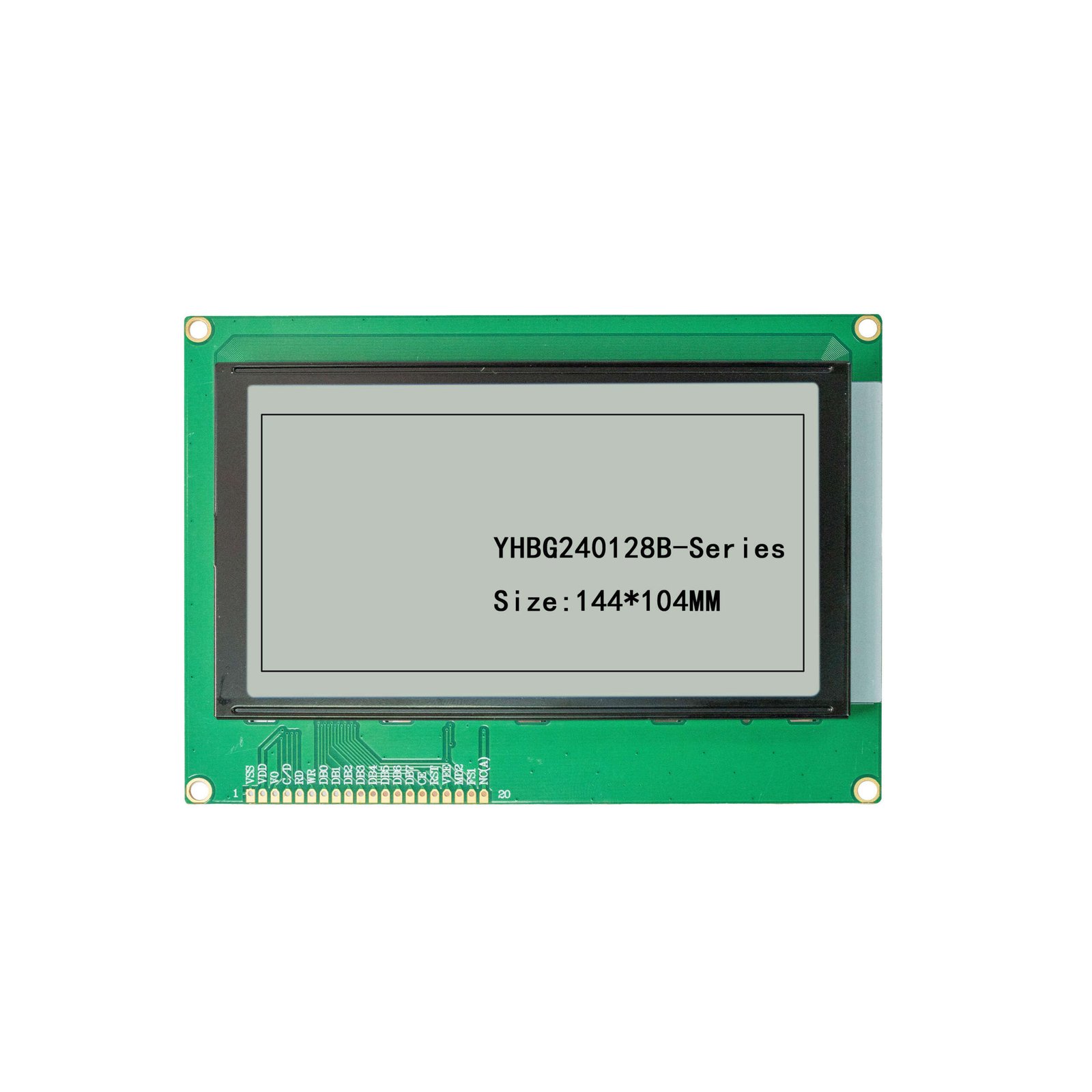

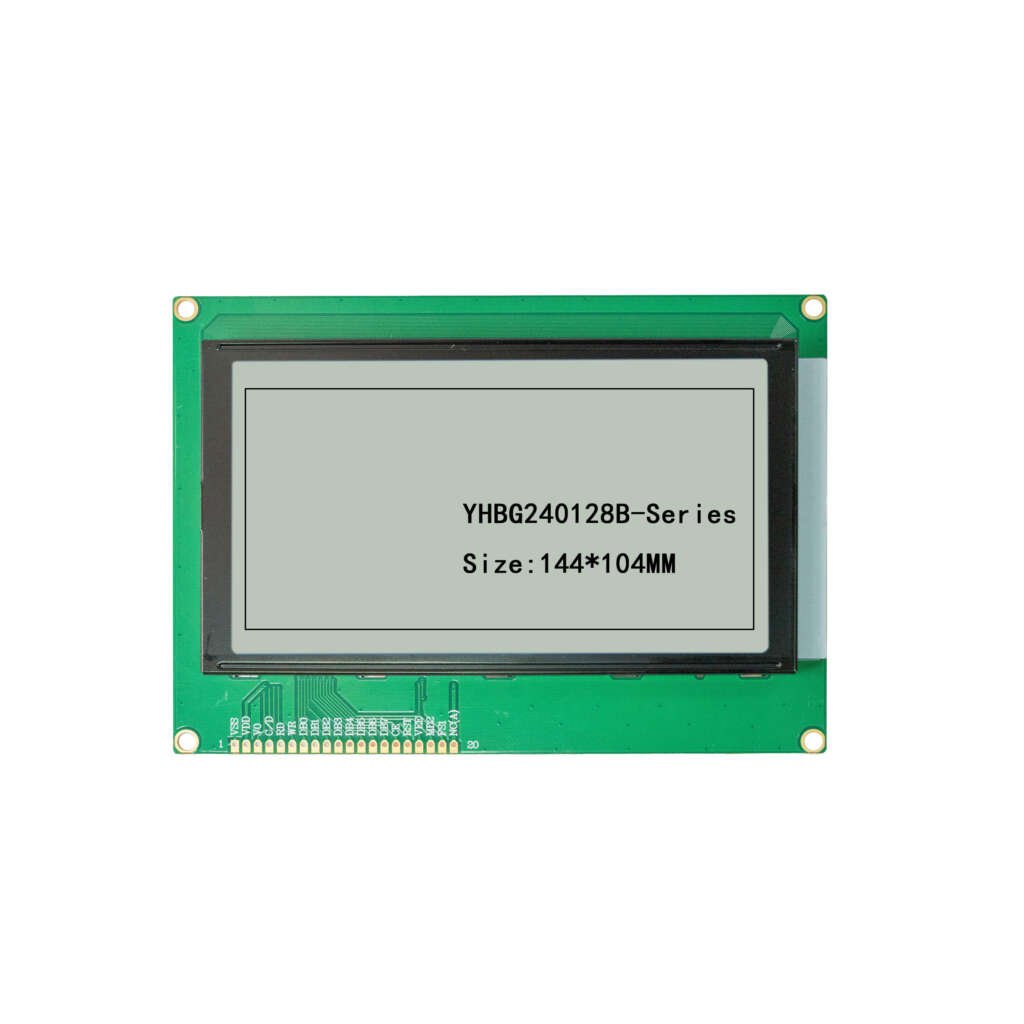

TL240128B 144.0mm x 104.0mm 114.0mm x 64mm

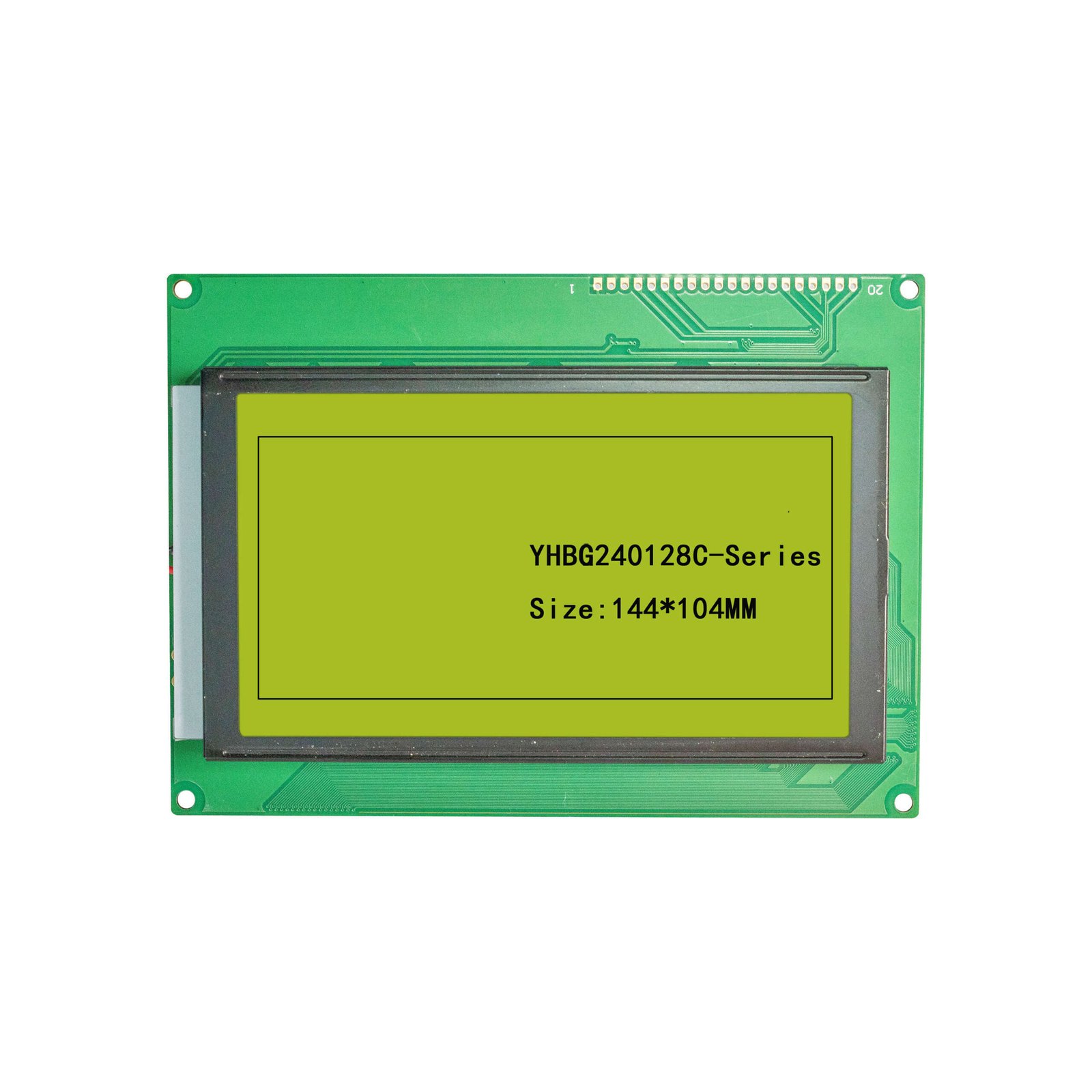

TL240128C 144.0mm x 104.0mm 114.0mm x 64mm
TL240128D 144.0mm x 104.0mm 114.0mm x 64mm
TL240128E 170.0mm x 95.0mm 124.0mm x 70mm
TL240128F 159.4mm x 101.0mm 124.0mm x 70mm
TL240128G 144.0mm x 104.0mm 114.0mm x 64mm
Display Type: 240128 Graphic
IC Options: T6963C/RA6963 /SAP1024B
Interface: Parallel Port
Product pin : 20 pin
Driving Voltage: 5V or 3.3V
LCD Colors: Yellow-Green/Blue/Grey/FSTN/other
